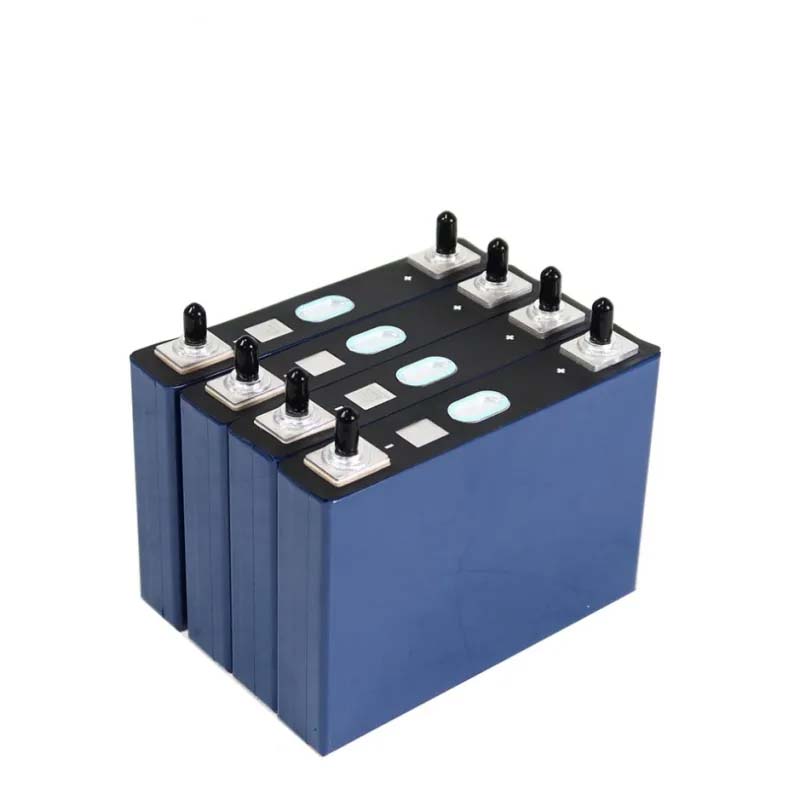

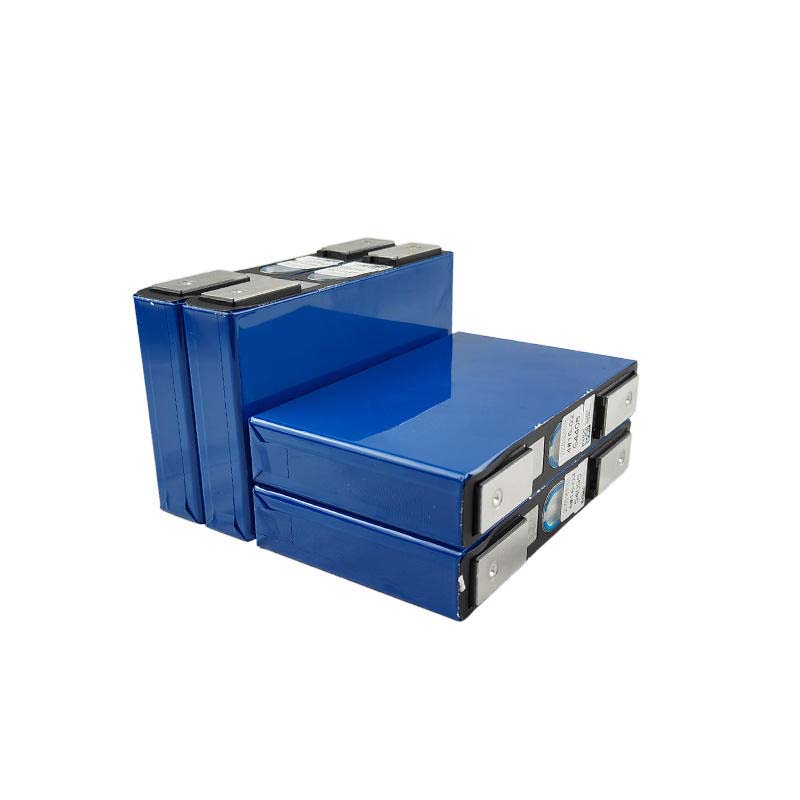

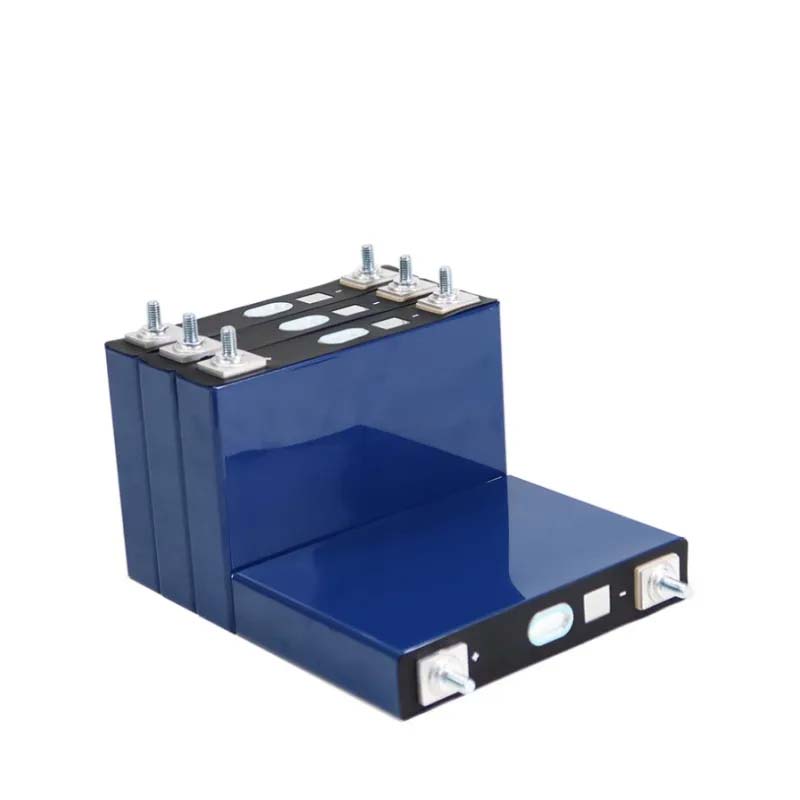

3.7V 57Ah/60Ah/62Ah NCM Prismatic Battery with M6 M8 Studs
NCM Prismatic Battery with M6 M8 Studs for Golf Carts & UPS
$35.00
Key Features:
Premium NCM Material: Advanced ternary composition delivers exceptional energy density and consistent electrochemical performance.
Copper-Plated M6/M8 Studs: Metric terminals minimize contact resistance, enable precise torque control and enhance anti-vibration reliability.
Prismatic Aluminum Shell: High-strength housing facilitates efficient heat dissipation and superior impact resistance.
Wide Temperature Adaptability: Maintains stable operation between -20℃~55℃ (discharge) and 0℃~45℃ (charge).
Long Cycle Life: Supports ≥3000 charge-discharge cycles (1C/1C, 80%DOD) with high capacity retention.
Built-in Safety Mechanisms: Equipped with a safety valve and ceramic-coated diaphragm to prevent overcharge, over-discharge and internal short circuits.
Core Advantages:
Superior Power Output: 2C maximum continuous charge/discharge current meets the instant power demands of golf carts and UPS backup systems.
Low Internal Resistance: ≤0.8mΩ (57Ah) and ≤0.4mΩ (60Ah/62Ah) to reduce energy loss and boost discharge efficiency.
Seamless Integration: Standard prismatic size and threaded studs allow direct replacement of lead-acid batteries, simplifying installation and retrofitting.
Low Self-Discharge Rate: <1.5% monthly self-discharge ensures long-term storage without significant capacity decay.
Cost-Efficient Durability: Extended cycle life reduces replacement frequency, lowering the total cost of ownership over time.
Applications:
Golf Carts: Provides stable, continuous power to extend driving range and reduce charging frequency.
UPS Systems: Delivers reliable backup power for communication devices, servers and industrial control systems.
Mobility Devices: Suitable for electric wheelchairs, scooters and small EVs requiring high reliability and long runtime.
Energy Storage: Ideal for small-scale solar energy storage systems and emergency backup power equipment.
Industrial Equipment: Powers portable industrial instruments, testing devices and emergency lighting systems.
Parameter | 57Ah | 60Ah | 62Ah |
|---|---|---|---|
Nominal Voltage | 3.7V | ||
Charge Cut-off Voltage | 4.2V | ||
Discharge Cut-off Voltage | 2.75V | ||
Max Continuous Charge Current | 2C | ||
Max Continuous Discharge Current | 2C | ||
Internal Resistance (1KHz) | ≤0.8mΩ | ≤0.4mΩ | |
Cycle Life (1C/1C, 80%DOD) | ≥3000 cycles | ||
Dimensions (T×W×H, mm) | 29×148×103 | 29×148×98.5 | 29×148×103 |
Weight (g) | ≈950 | 1050 | 980 |
Charging Temperature | 0℃~45℃ | ||
Discharging Temperature | -20℃~55℃ | ||
Terminals | M6/M8 Threaded Studs (Copper Plated) | ||
Storage Temperature | -20℃~45℃ (3 months max at full charge) | ||
This 3.7V prismatic lithium-ion battery series adopts a high-performance NCM (Nickel Cobalt Manganese) ternary cathode, offering three capacity options: 57Ah, 60Ah and 62Ah. Fitted with M6/M8 copper-plated threaded studs, it ensures anti-vibration stability and reliable connections, making it an ideal choice for golf carts and UPS systems. By integrating high energy density, long cycle life and robust safety features, it delivers efficient, durable power for both industrial and mobility applications.
