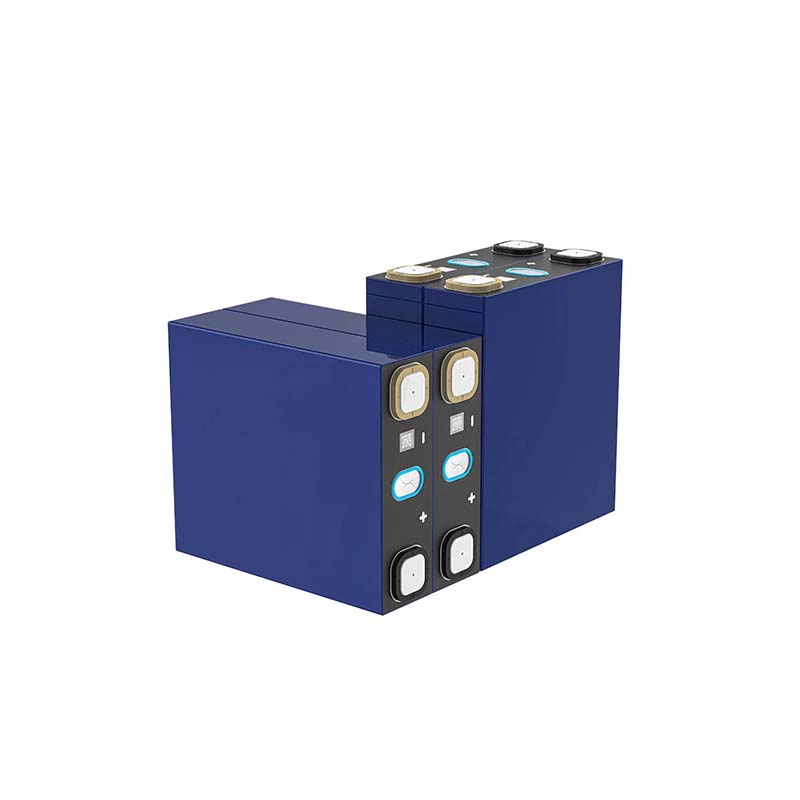

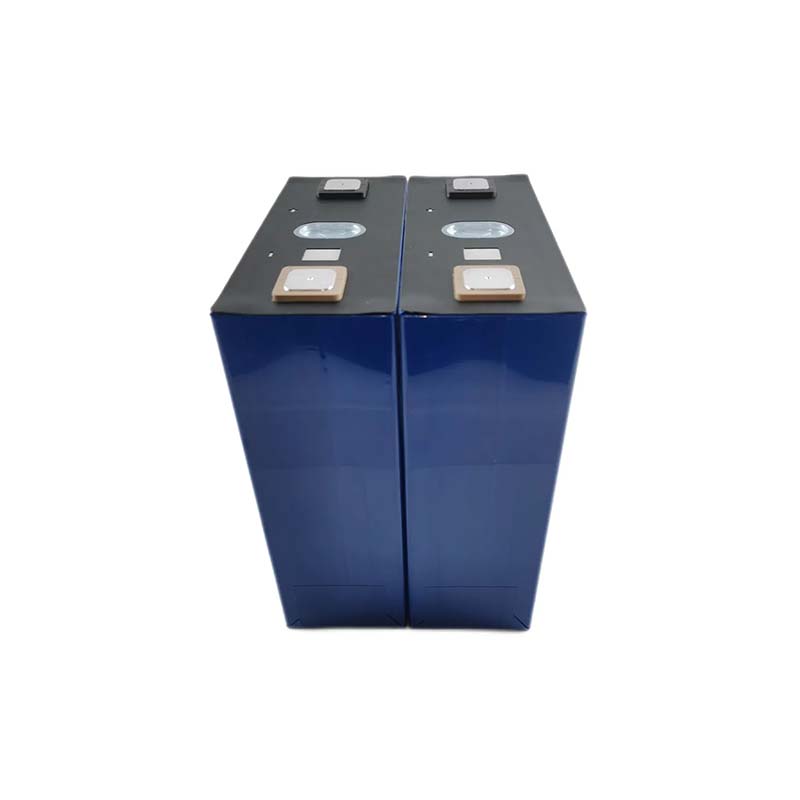

3.2V 316Ah LFP Prismatic Battery Cell
High Power for Solar PV System Industrial Backup Power
$45.00
Key Features:
High Capacity & Energy Density: 316Ah nominal capacity, with 168Wh/kg mass density and 365Wh/L volume density for maximum energy storage efficiency.
Long Cycle Life: ≥3500 cycles (1C charge/discharge) with ≥80% capacity retention, ensuring long-term reliability.
Wide Temperature Tolerance: Charging: -0℃~55℃; Discharging: -20℃~55℃, suitable for harsh outdoor and industrial environments.
Low Internal Resistance: <0.28mΩ, enabling efficient power delivery and minimal energy loss.
High Pulse Current Handling: 1.2C max pulse charge, 1.8C max pulse discharge (≤30s, 50% SOC) to handle transient high loads.
Precise Voltage Cutoff: 2.5V (≥0℃) / 2.0V (<0℃) to protect cell health and extend service life.
Core Advantages:
Unmatched Safety: LFP chemistry offers inherent thermal stability, with high resistance to overcharge, over-discharge, and short circuits.
Low Total Cost of Ownership: Long cycle life and low self-discharge reduce replacement and maintenance costs over the product lifecycle.
Flexible System Integration: Prismatic form factor and standardized 3.2V nominal voltage enable easy series/parallel configuration into 48V/96V/192V systems.
Environmentally Friendly: Non-toxic materials and 100% recyclable components align with global sustainability goals.
Applications:
Solar PV Systems: Grid-tied and off-grid solar energy storage, enabling self-consumption and peak shaving.
Industrial Backup Power: Critical power support for manufacturing facilities, data centers, and telecom base stations.
Commercial & Utility-Scale ESS: Grid stabilization, load shifting, and renewable energy integration for utility companies.
Off-Grid Power Solutions: Remote mining operations, rural electrification, and mobile construction sites.
Parameter | Specification |
Nominal Capacity | 316Ah |
Nominal Voltage | 3.2V |
Standard Discharge Current | 0.5C |
AC Internal Resistance | 0.35mΩ |
Mass Energy Density | >163Wh/kg |
Volume Energy Density | >390Wh/L |
Capacity & Energy Calibration | 1011.2Wh |
Cell Weight | 6200g ± 120g |
Rated Current | 1P |
Cycle Life | ≥10,000 cycles (capacity retention ≥80% @ 25±2℃) |
Max. Charge Current | 2P |
Max. Discharge Current | 2P |
3.2V 316Ah prismatic lithium iron phosphate (LFP) cell is an industrial-grade energy storage solution optimized for high-power, long-duration applications. It delivers a nominal capacity of 316Ah (0.5C discharge at 25±2℃) and maintains ≥80% capacity retention after ≥3500 cycles. With a wide operating temperature range and low internal resistance, it is engineered to meet the rigorous demands of solar PV systems and industrial backup power.
