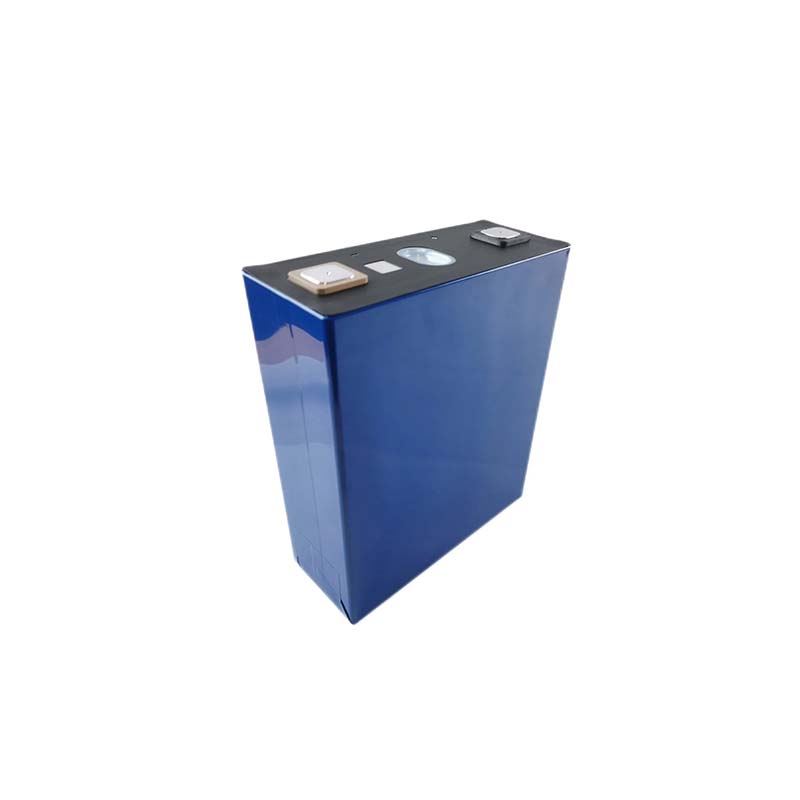

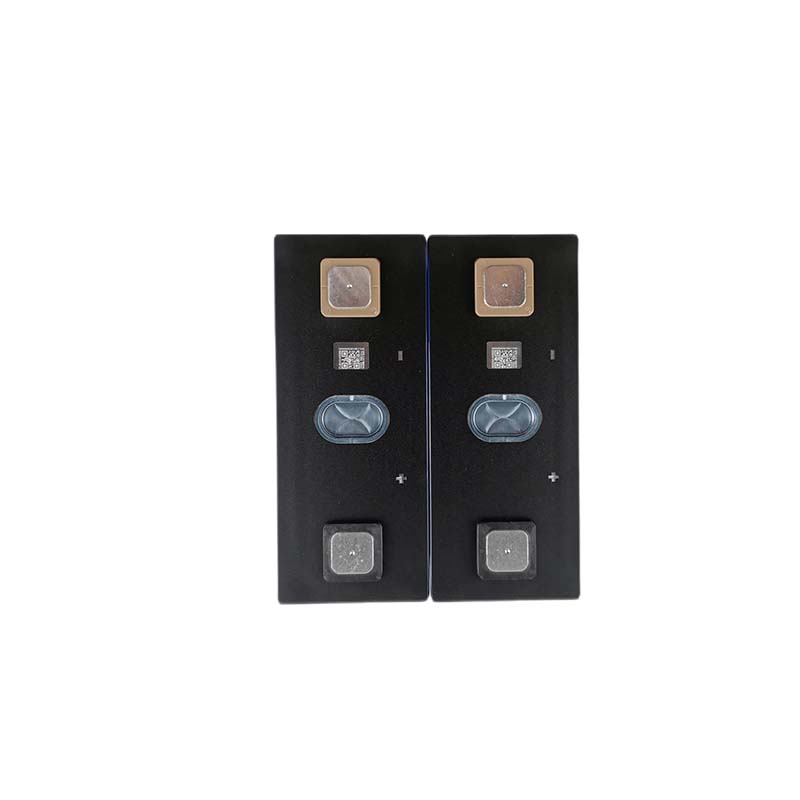

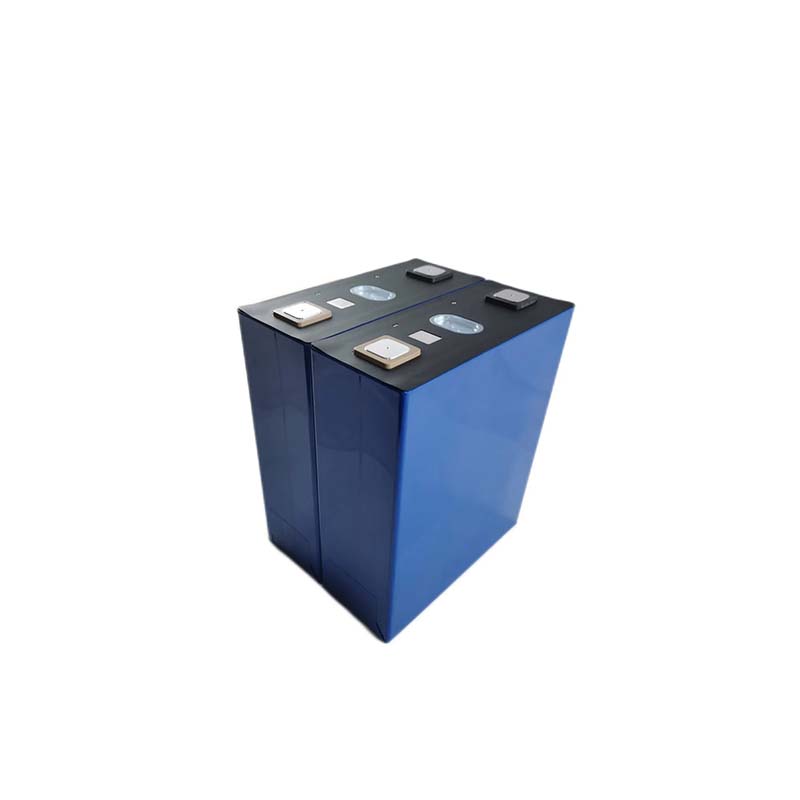

3.2V 206Ah LFP Prismatic Battery Cell
LFP Prismatic Battery Cell for ESS,Marine and Forklift
$20.00
Key Features:
High Capacity & Energy Density: 206Ah nominal capacity with 164Wh/kg mass density and 350Wh/L volume density for efficient energy storage.
Long Cycle Life: ≥3000 cycles (1C charge/discharge) with ≥80% capacity retention, ensuring long-term stability.
Wide Operating Temperature: Charging: -0℃~55℃; Discharging: -20℃~55℃, adapting to harsh environments.
Low Internal Resistance: <0.3mΩ for efficient power delivery and minimal energy loss.
High Pulse Current Tolerance: 1.0C max pulse charge, 1.5C max pulse discharge (≤30s, 50% SOC) to meet transient load demands.
Precise Discharge Cutoff: 2.5V (≥0℃) / 2.0V (<0℃) to protect cell health and extend lifespan.
Core Advantages:
Safety & Stability: LFP chemistry eliminates thermal runaway risks, with high resistance to overcharge, over-discharge, and short circuits.
Cost Efficiency: Long cycle life and low self-discharge reduce total cost of ownership for large-scale deployments.
Flexible System Integration: Prismatic form factor (54173200mm) and standardized voltage enable easy series/parallel configuration into 48V/96V systems.
Environmental Adaptability: Wide temperature range and high humidity tolerance (max.90% RH) suit both indoor and outdoor applications.

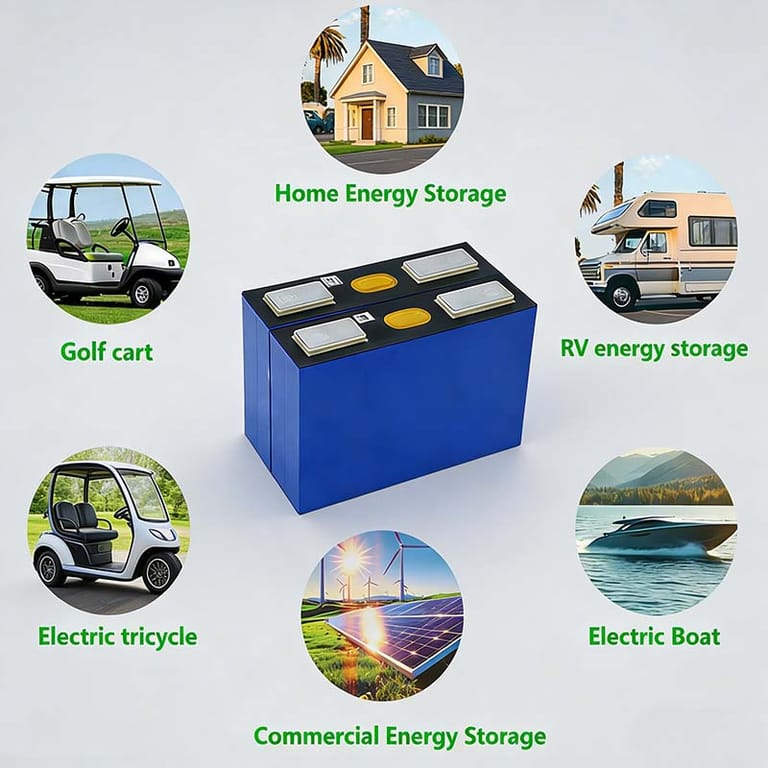

Applications:
Safety & Stability: LFP chemistry eliminates thermal runaway risks, with high resistance to overcharge, over-discharge, and short circuits.
Cost Efficiency: Long cycle life and low self-discharge reduce total cost of ownership for large-scale deployments.
Flexible System Integration: Prismatic form factor (54173200mm) and standardized voltage enable easy series/parallel configuration into 48V/96V systems.
Environmental Adaptability: Wide temperature range and high humidity tolerance (max.90% RH) suit both indoor and outdoor applications.
Parameter | Specification |
|---|---|
Nominal Capacity | 206Ah, 0.5C discharge @ 25±2℃ |
Nominal Voltage | 3.2V |
Charge Cut-off Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V (≥0℃) 2.0V (<0℃) |
Standard Charging Protocol | 25±2℃, 0.5C constant current to 3.65V → constant voltage hold until charging current ≤0.05C |
Standard Discharging Protocol | 25±2℃, 0.5C constant current discharge to 2.5V |
Max. Pulse Charging Current | 1.0C (15℃~45℃, 50% SOC), ≤30s |
Max. Pulse Discharging Current | 1.5C (15℃~45℃, 50% SOC), ≤30s |
Operating Temperature Range | Charging: -0℃ ~ 55℃, ≤90% RH Discharging: -20℃ ~ 55℃, ≤90% RH |
Internal Impedance | <0.3mΩ |
Dimensions (L×W×H) | 54 × 173 × 200 mm |
Cell Weight (excl. PCB) | 4000g ± 12g |
Mass Energy Density | 164Wh/kg |
Volume Energy Density | 350Wh/L |
Cycle Life | ≥3000 cycles (≥80% capacity retention) Test Condition: 25±2℃, 1C charge/discharge to 3.65V/2.5V |
3.2V 206Ah prismatic lithium iron phosphate (LFP) cell is an industrial-grade energy storage solution designed for high-cycle, high-reliability applications. It delivers a nominal capacity of 206Ah (0.5C discharge at 25±2℃) with a robust cycle life of ≥3000 cycles (remaining capacity ≥80%). The cell balances high energy density (164Wh/kg, 350Wh/L) with a wide operating temperature range, making it ideal for stationary and mobile heavy-duty scenarios.

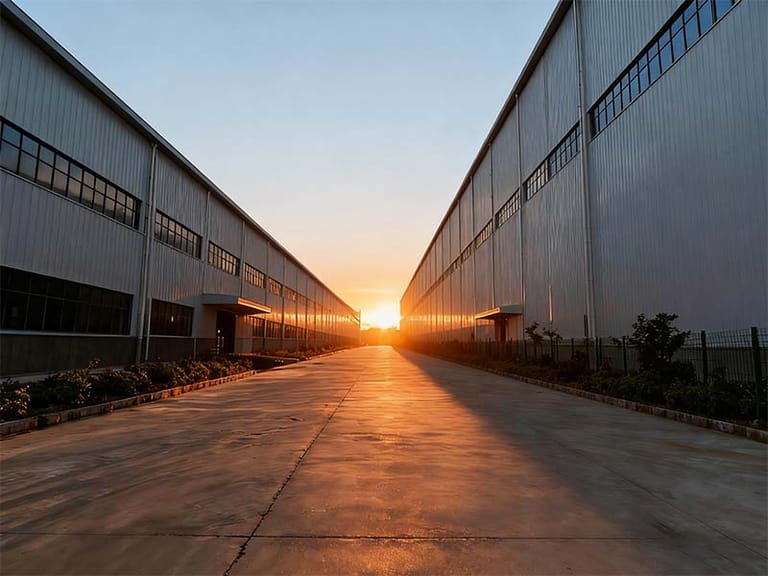

Production Facility

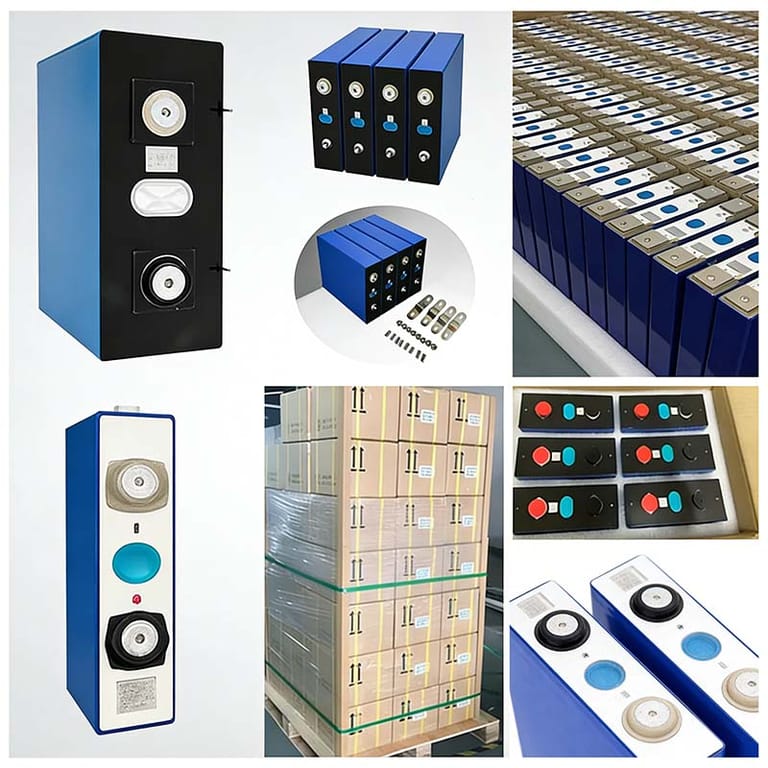

Package
